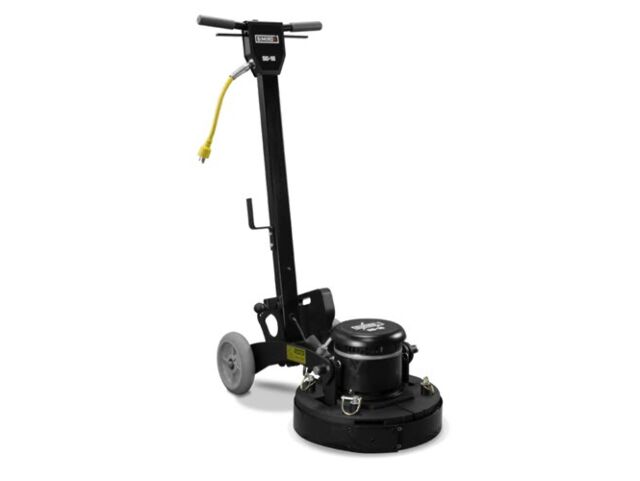

Simiron SG-16 Industrial Floor Grinder Machine, Complete Assembly

The SG-16 Grinder is a lightweight 110-volt grinder perfect for commercial projects, garages, basements, and difficult to access areas. The unique carriage design includes a floating head, which provides increased surface contact and reduced amp draw resulting in faster and more efficient operation. The SG-16 operates like a traditional floor grinder, and the dual-speed gearbox and motor allows the user to operate the machine at 165 rpms or 300 rpms. The SG-16 can grind, remove coatings, prep an existing coating for recoat, strip, scrub, and polish up to 108% faster than conventional swing machines. The pad driver can be outfitted with all Simiron diamond technology from heavy removal to high-gloss polishing diamonds.

Heavy-duty, built-in dust control port easily attaches to any vacuum system. Removable steel handle and carriage for easy transport and storage. Adjustable handle for operator comfort and safety. Large 2" x 8" ball bearing non-marking wheels for ease of transport, UL/CUL safety approved. Thumb operated negative pressure on/off switch. The SG-16 Grinder requires an electrical outlet capable of providing 110-120 volts for proper usage. The grinder has a grounding plug, and should be connected to a properly grounded outlet for safe operation.

Complete Assembly Includes:

• 1.5, 66 frame, DC rectified 2- speed motor
• Hi-Lo 2-speed toggle switch mounted on motor
• 110V, 50/60 Hz power
• 50 ft. 12-3 SJYOW, 2- piece yellow power cord with twist lock plug
• Triple-planetary XHD 11:1 helical-cut industrial gears, case hardened with steel coupler drives, pad driver with Simiron diamond technology
• 108 lbs. Head weight with 2 weight plates (35 lbs. total)
• 27 lbs. Weighted Claw Driver attachment holds a variety of Simiron diamond tools
• 28 lbs. Carriage weight
• 224 lbs. Total weight with handle and weight plates for head and carriage
• Grinding plates not included

NOTE: Diamond griding blades not included, sold separately.  This grinder takes 9 diamond grinding blades for a complete set.
