TimberTech® Impression Rail Express® Extra Bracket Kit

In stock

Impression Rail Express® Level & Stair Panel Attach Kit is used when a level or stair rail panel is cut into two pieces to be installed as two separate sections. One kit secures one level or stair panel to two posts.

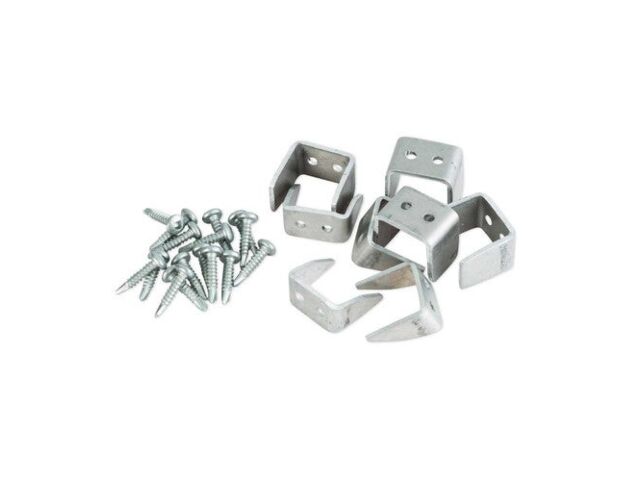

Kit includes:

  • (4) aluminum U-brackets
  • (4) angled aluminum U-brackets
  • (16) screws.


Impression Rail Express® is contemporary, strong, and unobstructive. Seek out this minimalist railing profile that boasts a pre-assembled, aluminum panel system that keeps sightlines clear and balusters rattle-free by being locked in place. Sleek, strong, and durable, this railing profile features hidden fasteners and fades into the background to keep your stunning view the star of your outdoor living space. Designed for style and safety, decks with this rail gain an added air of sophistication. Railing is the first thing neighbors see when they peek into each other’s yards, so make a style statement with a minimalist metal railing. This pre-assembled, aluminum panel rail system boasts a wider top and a sleek design profile while being secure, durable, and strong.

Select a store
84 Available in stock
  • Evokes the subtle grace and character of classic cast-iron fences
  • Express your style with a variety of infills and low-maintenance, powder-coated finishes
  • Pre-assembled railing panels come with patented, rattle-free, weld-free baluster connections for fast and easy installation
  • No painting or staining required
  • Will not rot, peel, or blister
  • Covered by 25-year limited warranty
More Information
Type Railing Hardware
Width 5 in.
Height 4 in.
Brand Timbertech by Azek
Finish Stainless Steel
Material Aluminum
Manufacturer Code AZTIXBKTKIT

Product Selection Process:

  1. Choose panel kit lengths for level and stair applications
  2. Choose top rail
  3. Choose post kits
  4. Choose accessories (Touch-Up and Bracket Jig kits).

All corresponding IRX items sold separately from panels.

Suggested Tools: Appropriate fasteners for mounting posts to deck, miter saw with carbide tipped non-ferrous blade, cordless drill, tape measure, level, power cords, drop sheets and safety glasses, 3/16 in. Drill bit, 6 in. #2 Square drive bit, Installation jig (optional)

Prior to construction, check with your local regulatory agency for special code requirements in your area. Common railing height is 36 in. or 42 in. Post spans will vary depending on job site conditions. Never span more than 8 ft. on-center between railing posts. Spans longer than 12 ft. in length will require reduced post spans. 3 in. posts are required to reach 6 ft. and 8 ft. lengths. 2 in. posts must be set in-line to panel.

Do not install post caps and vinyl post base covers until railing assembly is completed. 3 in. posts are required at all transitions. 2 in. posts may not be used to start/end a run or to form a corner.

The top snap covers should snap firmly onto the aluminum railing channels. Do not use a hammer. The top rails will snap by applying pressure from one end to the other. If you’re having issues snapping on the covers, check the clips to ensure that they are bottomed out into the aluminum railing channels. Foot Blocks must be installed BEFORE installing Top Rail Snaps.
