Simpson Strong-Tie ABW Adjustable Post Base with Wind Uplift for 4 x 4 Post, ZMAX®

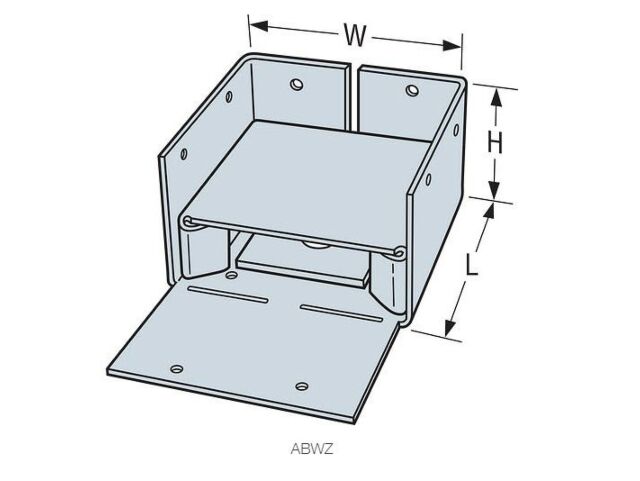

The ABW is designed to attach wooden posts to existing concrete in medium-capacity applications. The built-in 1 in. standoff of this adjustable post base helps to prevent rot at the end of the post. The ABW has a slotted anchor hole in the base for adjustability and attaches to the post with nails or Strong-Drive® SD Connector screws. This versatile post base makes a cost-effective option for securing a post to the foundation. Dimensions: Width 3-9/16 in. Length 3-9/16 in. Height 2-1/4 in.
$21.55
each
- The slot in the base enables flexibility around the anchor bolt, making precise post placement easier
- 1 in. stand-off design meets code requirements for structural posts installed in basements or exposed to weather or water splash
- Increased uplift loads for earthquake or wind loading
| Type | Retrofit Post Base |
|---|---|
| Size | 4 x 4 |
| Gauge | 12 ga. |
| Brand | Simpson Strong Tie |
| Finish | ZMAX® |
| Material | Steel |
| Manufacturer Code | ABW44Z |
Fasteners Needed: Nails 16d = 0.162 in. dia. x 3 1/2 in. long, 10d = 0.148 in. dia. x 3 in. long.
