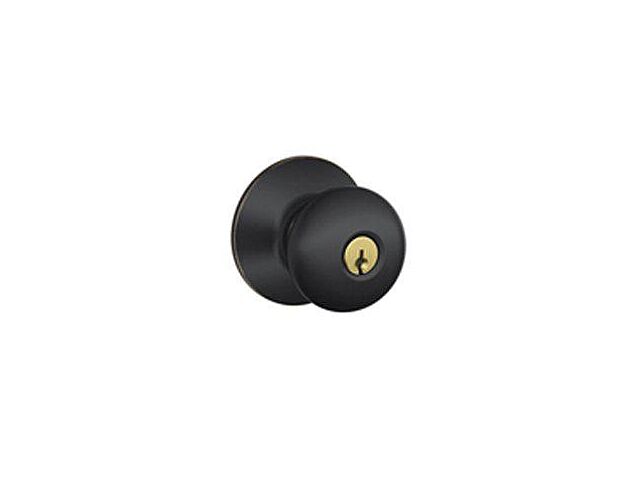

Schlage Plymouth Keyed Entry Knob Aged Bronze

By
In stock
SKU
SF51716



For residential single and multi-family entrance doors. Unlocked by key from outside when outer knob is locked by turn button on inside knob, Emergency Exit feature, no unlocking required for panic exit, inside knob always unlocked.1-Piece knob for better security and appearance. Solid brass trim and all metal parts. Wrought brass exposed trim. Pressure cast zinc tubular lock housing. Key removable outside knob for easy cylinder replacement.  For 1-3/8 to 1-3/4 in Thick Door.

3-Piece assembly for easy installation. All locksets have the same finish for both interior and exterior parts.

Fits all doors, 2-3/4 in or 2-3/8 in backset, 1-1/8 in square corner, 1/4 in round corner or circular drive in preps.

Specifications:

  • 2-1/8 in crossbore
  • 7/8 in or 1 in edge bore
  • 1 in x 2-1/4 in Latch Face
  • 1/2 in throw standard.
  • Cylinder 5-pin tumbler C keyway with nickel silver keys (2).
  • Faceplate 1 in x 2-1/4 in.
  • Strikes of Full lip, 1-5/8 in x 2-1/4 in, 1-1/8 in lip.
  • Bolt 7/8 in housing. ANSI A 156.2, 1996, Series 4000 Grade 2.



$34.99
each
Select a store
105 Available in stock
Delivery
Available
  • Keyed entry function unlocks when door is opened from the inside, allowing you to leave quickly, conveniently and re-enter easily
  • Works with right and left swing doors
  • Fit standard pre-drilled doors
  • Finishes coordinate easily with plumbing and lighting fixtures
  • Use a key from the outside or manually rotate the interior turn button to lock and unlock
  • Lock and finish backed by limited lifetime warranty
  • Easy installation with Phillips screwdriver
  • Self-aligning screw holes make installation easy and hassle-free
  • Universal latches slide easily into place and require no tools or manual adjustments
More Information
Type Entry Set
Brand Schlage
Finish Aged Bronze
Manufacturer Code F51A VPLY716
