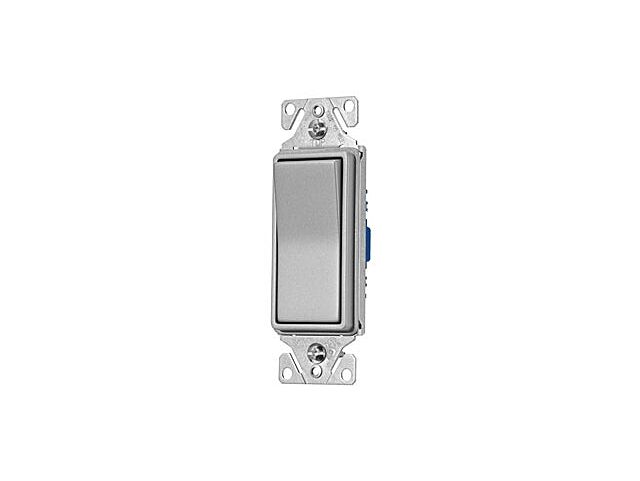

Eaton Wiring Devices 7500 Series 7501SG-K-L Rocker Switch, 120/277 V, Strap Mounting, Thermoplastic, Silver Granite
Ultrasonic welding and integrated construction of the strap and body. Backwire clamps on the side terminals for installation of #12 and #14 wire. Thermoplastic rocker, top and back body are virtually unbreakable. Screws accept slotted, Phillips and Robertson head tools for installation in both the USA and Canada. Longer, wider strap provides 40% more contact area to wall board. Virtually eliminates floating installations. Built-in wire stripper for #12 and #14 wire. Stippled ground screw standard. 15 A, 120/277 VAC rating for fluorescent lighting fixtures typical in commercial applications. Push in terminals accept #14 solid wire only. Temperature rating of -20 to 60 deg C. Meets flammability requirements per UL 94, 6504, V2 rated, VO rated. UL and cUL listed, meets all UL20 requirements.
$7.99
each
- Thermoplastic rocker, top and back body are virtually unbreakable to deliver years of durable performance
- Ultrasonic welding and integrated construction of the strap and body provide great ground integrity even under heavy use
- Backwire clamps on side terminals provide for easy installation of #12 and #14 AWG wire
- Push-in terminals accept #14 AWG solid wire for quick installation
- Stippled ground screw terminal standard
- Long, broad mounting strap virtually eliminates floating installations
- Patented built-in wire stripper for #14 and #12 AWG wire to speed installation
- Tri-combo screws accept Slotted, Phillips and Robertson-head tools for installation flexibility
- Lighted switches glow in OFF position
| Type | Single Pole Switch |
|---|---|
| Brand | Eaton |
| Manufacturer Code | 7501SG-K-L |
