TimberTech® Cortex® Loose Plugs Only, Driftwood, 40 Count
TimberTech® is focused on fasteners. Opt for the best fastening systems to install your deck. Cortex® Plug is a hidden fastener works with a system featuring a high quality, ACQ-approved, specialty deck screw with a Torx® tap® drive system. Included color-matched plugs are made from TimberTech® PRO® Reserve Collection deck boards to hide the fastener. It can be used on the entire deck surface, including stairs and perimeters, where other hidden fasteners cannot. Installation requires pre-drilling with a 7/32 in. drill bit.

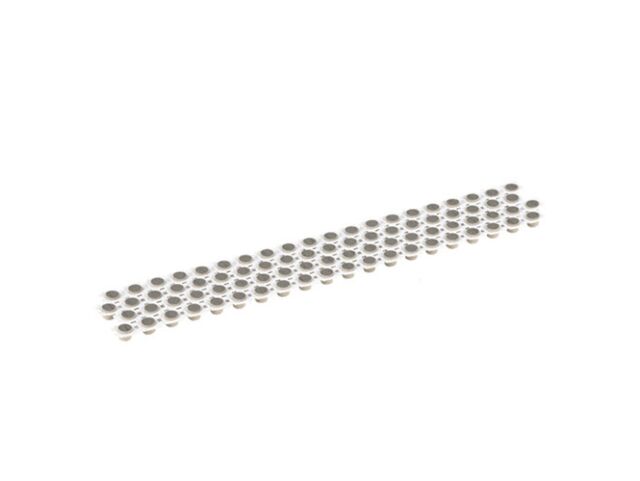

This pack includes 40 plugs only.
As low as
$13.99
each
- Top-down fastener with color-matched plugs made from TimberTech® decking for the ultimate fastener-free surface
- Strongest hidden fastener connection from TimberTech® that can be used on the entire deck surface, including stairs and perimeters
- Stainless steel screws with color-matched plugs made from TimberTech® Dark Roast™ deck boards
- 2-1/2 in. concealed deck screw with a #20 TORX® ttap® drive system
- Uniquely designed for TimberTech® decking products for optimal performance
- Protect your investment with a 25-Year Residential Warranty
| Series/Sub-Brand | Cortex |
|---|---|
| Type | Screws w/Plugs |
| Size | #10 |
| Color | Antique Leather™ |
| Length | 2-1/2 in. |
| Drive Type | Torx |
| Brand | Timbertech by Azek |
| Color Family | Natural |
| Finish | E-Coat |
| Material | Steel |
| Pack Size | 100 LFT/box |
| Manufacturer Code | CTX100RCAL |
Tools Required: safety glasses, router with slot cutting blade, drill (Corded or cordless (18V battery) drill with 1/2 in. chuck- Impact Drivers are not recommended when using TimberTech® Cortex)
- Pre-drilling with a 3/16 in.drill bit is always required when installing Cortex in TimberTech® decking.
- The Cortex Setting Tool must be used to set the Cortex screw to the proper depth.
- The Cortex fastener must be driven perpendicular to the deck surface for proper fit and ideal finished look.
- The cored hole must be free of debris or moisture. Use a smooth hammer head to set the Cortex plug.
- The interaction between the deck board, screw, and plug is essential. Use of non-Cortex Screws or non-Cortex plugs will nullify the warranty. End and Edge Distance Minimums
- Pre-drilling is required for installation into TimberTech® decking or mushrooming and splitting will occur.
- Pre-drilling should be done with a 3/16 in.drill bit to create the proper pilot hole.
- No fasteners should be installed closer than 3/4 in. from the end or edge of the board. Restricted Cortex Uses The TimberTech® Cortex System is designed for traditional elevated deck surfaces.
The following applications require a different fastening method:
- Sleeper systems: Framing rests directly on the ground or roof deck.
- For attaching fascia and riser boards: TimberTech® TOPLoc Fascia Fasteners should be used.
- Docks or decks with framing members in constant contact with saltwater.
- Deck materials with a scalloped bottom such as, but not limited to PRO Terrain, EDGE Prime, EDGE Prime+, and Reliaboard.
