TimberTech® Cortex® for Advanced PVC, Screws with Collated Plugs, Cypress, 100 SF
TimberTech® is focused on fasteners. Opt for the best fastening systems to install your deck. These high-quality fasteners give decks added strength and integrity for years to come. Square-shoulder boards allow for top-down fastening, while grooved boards are designed for hidden clip fasteners. TimberTech® Cortex® Screw and Plug is a hidden fastener system featuring a high quality, ACQ-approved, specialty deck screw with a Torx® ttap® drive system. Included color-matched plugs are made from TimberTech® Compsite Reserve Collection deckboards to hide the fastener. It can be used on the entire deck surface, including stairs and perimeters, where other hidden fasteners cannot. Installation requires pre-drilling with a 7/32 in. drill bit.

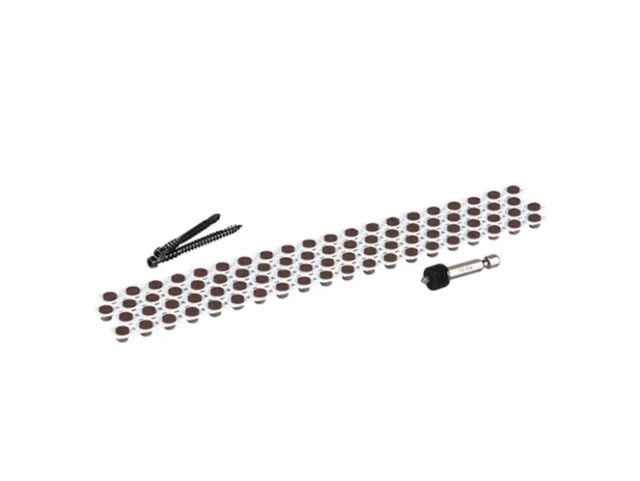

This pack includes 350 Screws, 400 Plugs, 3 bits
- Top-down fastener with color-matched plugs made from TimberTech® decking for the ultimate fastener-free surface
- Strongest hidden fastener connection from TimberTech® ®that can be used on the entire deck surface, including stairs and perimeters

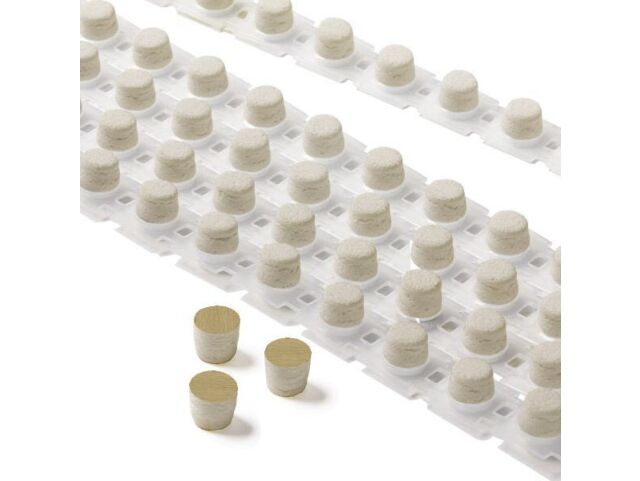

- Stainless steel screws with color-matched collated plugs made from TimberTech® Mahogany deck boards
- 2-1/2 in. concealed deck screw with a #20 TORX® ttap® drive system
- Protect your investment with a 25-Year Residential Warranty
| Type | Screws w/Plugs |
|---|---|
| Size | #10 |
| Color | Cypress |
| Length | 2-1/2 in. |
| Drive Type | Torx |
| Brand | Timbertech by Azek |
| Finish | E-Coat |
| Material | Steel |
| Pack Size | 100 sq.ft. |
| Manufacturer Code | CTC100SFCY |
Tools Required: safety glasses, router with slot cutting blade, drill (Corded or cordless (18V battery) drill with 1/2 in. chuck- Impact Drivers are not recommended when using TimberTech® Cortex)
• Pre-drilling with a 3/16 in. drill bit is always required when installing Cortex in TimberTech® decking.
• The Cortex Setting Tool must be used to set the Cortex screw to the proper depth.
• The Cortex fastener must be driven perpendicular to the deck surface for proper fit and ideal finished look.
• The cored hole must be free of debris or moisture. Use a smooth hammer head to set the Cortex plug.
• The interaction between the deck board, screw, and plug is essential. Use of non-Cortex Screws or non-Cortex plugs will nullify the warranty.
End and Edge Distance Minimums
• Pre-drilling is required for installation into TimberTech® decking or mushrooming and splitting will occur.
• Pre-drilling should be done with a 3/16 in. drill bit to create the proper pilot hole.
• No fasteners should be installed closer than 3/4 in. from the end or edge of the board.
Restricted Cortex Uses
The TimberTech® Cortex System is designed for traditional elevated deck surfaces. The following applications require a different fastening method:
• Sleeper systems: Framing rests directly on the ground or roof deck.
• For attaching fascia and riser boards: TimberTech® TOPLoc Fascia Fasteners should be used.
• Docks or decks with framing members in constant contact with saltwater.
• Deck materials with a scalloped bottom such as, but not limited to PRO Terrain, EDGE Prime, EDGE Prime+, and Reliaboard.
