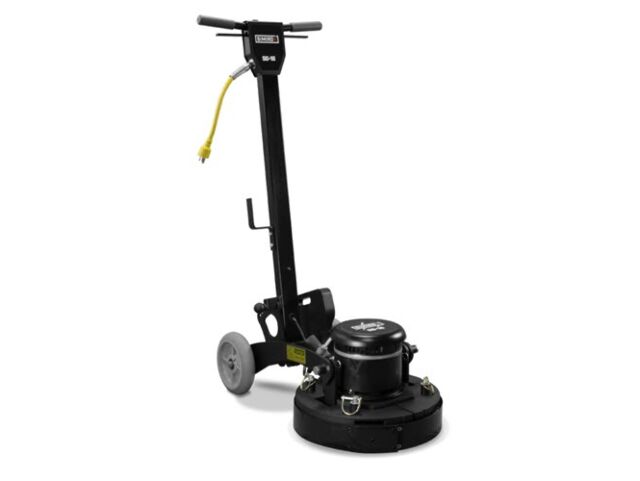

Simiron SG-16 Industrial Floor Grinder Machine Kit Including Hard-Medium Bond Segmented Diamond Plates

In stock
SKU
SIMIRONFLRGRINDER16G



Simiron SG-16 Grinder is a lightweight 110-volt grinder perfect for commercial projects, garages, basements, and difficult to access areas. The unique carriage design includes a floating head, which provides increased surface contact and reduced amp draw resulting in faster and more efficient operation. The SG-16 operates like a traditional floor grinder, and the dual-speed gearbox and motor allows the user to operate the machine at 165 rpms or 300 rpms. The SG-16 can grind, remove coatings, prep an existing coating for recoat, strip, scrub, and polish up to 108% faster than conventional swing machines.

Heavy-duty, built-in dust control port easily attaches to any vacuum system. Removable steel handle and carriage for easy transport and storage. Adjustable handle for operator comfort and safety. Large 2" x 8" ball bearing non-marking wheels for ease of transport, UL/CUL safety approved. Thumb-operated negative pressure on/off switch. The SG-16 Grinder requires an electrical outlet capable of providing 110-120 volts for proper usage with a grounding plug, and should be properly grounded outlet for safe operation.

This Simiron floor grinding kit includes Simiron's Metal Double Segmented 16 Grit Hard to Medium Grinding Plates are a powerful tool for preparing concrete surfaces for a variety of applications. Designed for coating removal, thin mastic removal, exposing large aggregate, and prepping concrete for applying coatings 10-20 mils. Simiron's tooling is designed for maximum life and performance, using a combination of superior diamonds and a durable matrix. Note that 9 blades are required for the SG-16 plate.

Complete Diamond Metal Double Segmented, 16 Grit Hard to Medium Bond:

  • Set of 9 Diamond Plates
  • Complete set of diamonds to get started
  • Blue Series - 16 Grit Hard to Medium Concrete - MOHS 7
  • For Concrete Grinding

Complete Assembly of SG-16 Grinder Machine Includes:

  • 1.5, 66 Frame, DC rectified 2- speed motor
  • Hi-Lo 2-speed toggle switch mounted on motor
  • 110V, 50/60 Hz power
  • 50 ft. 12-3 SJYOW, 2- piece yellow power cord with twist lock plug
  • Triple-planetary XHD 11:1 helical-cut industrial gears, case hardened with steel coupler drives, pad driver with Simiron diamond technology
  • 108 lbs. Head weight with 2 weight plates (35 lbs. total)
  • 27 lbs. Weighted Claw Driver attachment holds a variety of Simiron diamond plates
  • 28 lbs. Carriage weight
  • 224 lbs. Total weight with handle and weight plates for head and carriage
Select a store
Available in stock
Delivery
Available
Grouped product items
Image of Simiron SG-16 Industrial Floor Grinder Machine, Complete Assembly
Simiron SG-16 Industrial Floor Grinder Machine, Complete Assembly
$3,494.00
Quantity
Image of Simiron Diamond Metal Double Segmented, Hard to Medium Bond, Blue, 16 Grit
Simiron Diamond Metal Double Segmented, Hard to Medium Bond, Blue, 16 Grit
$35.19
Quantity

This Floor Grinding Kit includes:

SG-16 Industrial Floor Grinder Machine, Complete Assembly (Diamonds not included)

Simiron Diamond Metal Double Segmented, Hard to Medium Bond Diamond Plates, 16 Grit set of 9, great for prepping concrete for applying coatings 10-20 mils thick.

Simiron SG-16 Floor Grinder with 16 Grit, Hard to Medium Metal Diamond Plates great for:

  • Industrial Floor Grinding Jobs
  • Operates like a traditional floor grinder
  • Faster than conventional swing machines
  • Heavy-duty
  • 110V, 50-60 HZ Power
