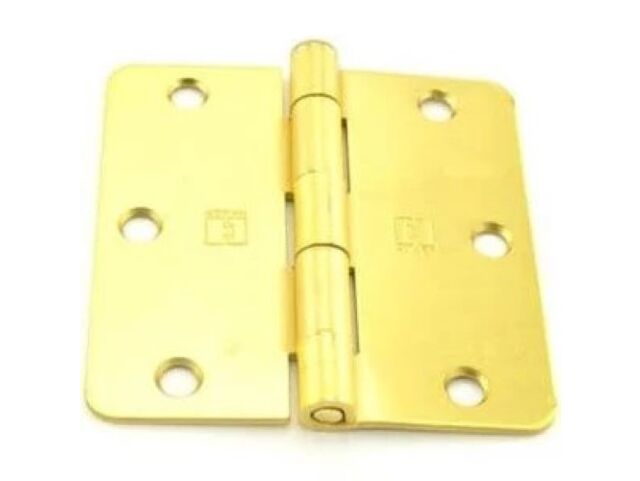

Hager 3-1/2 in. x 3-1/2 in. Steel Hinge with Rounded Corners, Pair
Hager, RC1741, 3-1/2 in. x 3-1/2 in. Rounded Corners, Full Mortise Door Hinges have one leaf mortised in the door edge and the other leaf mortised in the jamb. This is the most common hinge application. Five Knuckle with Button Tips. Non-Template Hole Pattern. Supplied with Removable Pin (SRP) as standard. Specify SRP or NRP when applicable. Non-Removable pin prevents the hinge pin from being removed when the door is closed. A threaded set screw located in the barrel is tightened down into a groove in the hinge pin. Gauge of Metal: 0.085, Material: Steel w/ Steel Pin, BHMA Certified Architectural Grade Hinge. All residential hinges conform to the "Light Weight" requirements of ANSI A156.1. Standard packaging includes two (2) hinges with screws
As low as
$5.10
Pair
- Hinge Size: 3-1/2 in. X 3-1/2 in.
- Corners: Rounded
- Color: (US4) Satin Brass
- Gauge of Metal: 0.085
- Material: Steel w/ Steel Pin
- Pin: Removable
- BHMA Certified Architectural Grade Hinge.
- Standard packaging includes two (2) hinges with screws
| Type | Hinges |
|---|---|
| Color | (US4) Satin Brass |
| Width | 3-1/2 in. |
| Length | 3-1/2 in. |
| Brand | Hager |
| Color Family | Gold |
| Material | Steel |
| Pack Size | 2 Hinges |
| Manufacturer Code | RC1741 (US4) |
Hager residential hinges are provided without lubrication. We recommend lubricating the hinges after installation. All residential hinges conform to the "Light Weight" requirements of ANSI A156.1.
