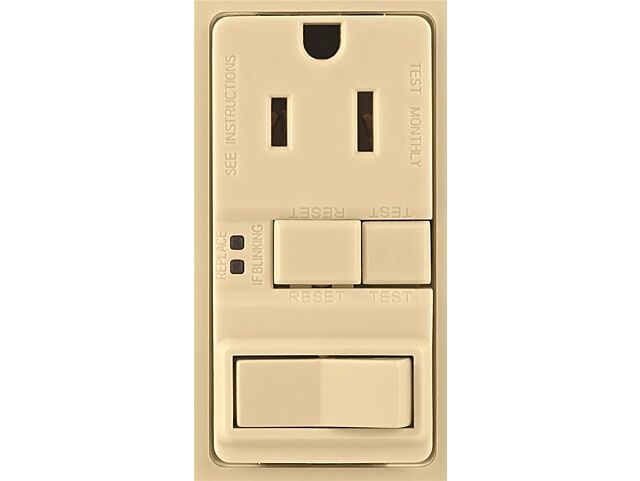

Eaton Wiring Devices SGFS15V-MSP GFCI Receptacle and Switch, 15 A, 2-Pole, 5-15R, Ivory

By
In stock
SKU
COO75306


GFCI Receptacle is UL listed, fully compliant with all latest UL 943 (4th edition) Class A GFCI, UL 498 requirements and UL 508 for motor control switch horsepower rating. GFCI lock-out function protects from miswired line-load connections and GFCI circuitry damage. Compact design provides maximum wiring room in "grounded box" applications. Device and wallplate mounting screws are captive, speeding installation time.
$42.99
each
Select a store
5 Available in stock
Delivery
Available
  • Performs periodic self-tests to ensure integrity of GFCI protection
  • Visual trip indicator light gives quick notification of a tripped or "end of life" condition
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • Ground termination with back wire clamp provides secure wiring and reduces installation time
  • Line side terminals are backed out and staked for fast installation
  • Horizontal test/reset button alignment provides larger unobstructed area
  • Test and reset buttons are color matched to provide great aesthetics
  • Tapered back wire openings handle multiple wire sizes and types for applications up to #10 AWG solid or stranded wire
  • When downstream receptacles are wired from load side, a 20 A feed-through rating offers full protection
More Information
Type Gfci Receptacles/Switches
Brand Eaton
Manufacturer Code TRSGFS15V-M-L
