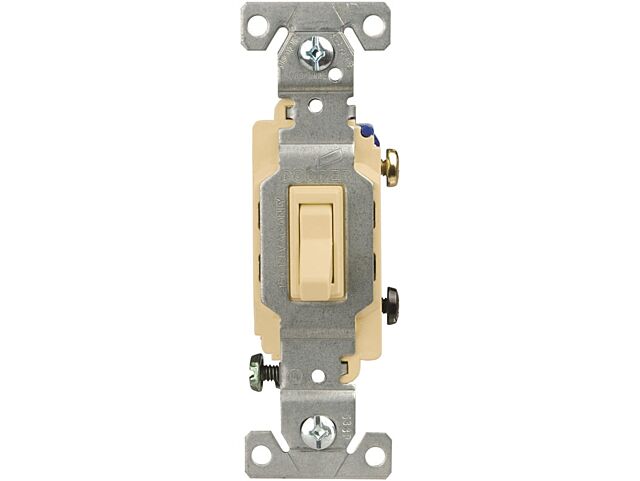

Eaton Wiring Devices CSB115STV-SP Toggle Switch, 120/277 V, Wall Mounting, Nylon, Ivory
Small toggle switch blends with standard grade toggles. Larger contacts, backwire clamps on the side terminals. Side wire terminals accept up to number 10 solid wire. Back wire terminal accepts 12 ga or 14 ga wire. Heavy-duty cam action mechanism. Long, broad steel mounting strap, zinc-plated for corrosion resistance. Built-in wire stripper for #12 and #14 wire. Ground screw terminal, stippled line and ground contacts standard. Tri-combo head mounting and terminal screws. 15 A, 120/277 V. cULus listed, NOM certified.
$4.99
each
- Larger contacts and robust design for extended switch life
- Backwire clamps on the side terminals provide for easy installation of #12 and #14 AWG wire
- Side wire terminals accept up to #10 solid wire
- Long, broad steel mounting strap zinc plated for corrosion resistance, virtually eliminates floating installations
- Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
- Ground screw terminal standard
- Stippled line and ground contacts standard
- Tri-combo head mounting and terminal screws ease installation
| Type | Single Pole Switch |
|---|---|
| Brand | Eaton |
| Manufacturer Code | CSB115STV-SP |
